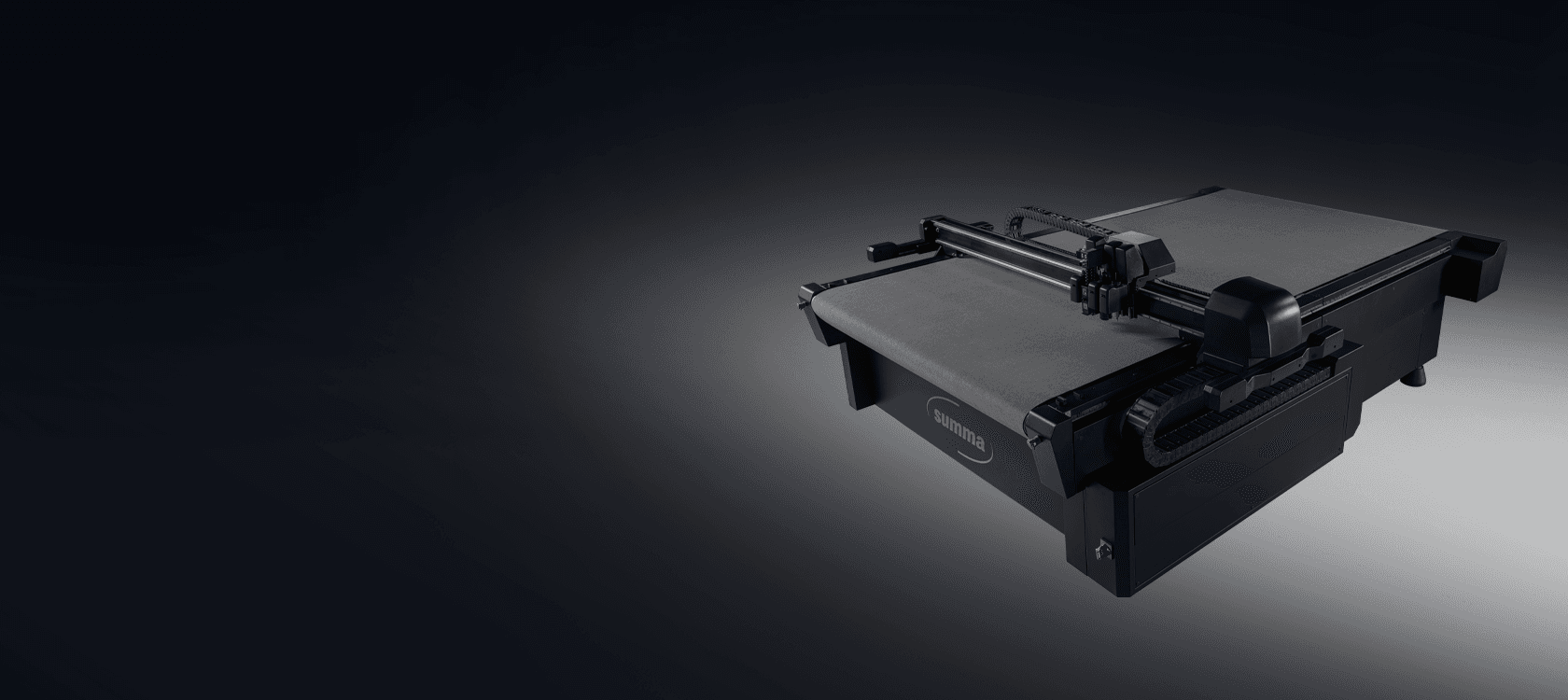

F Series Vantage
whEre production mEets precision
Materials multiply. Deadlines shrink. Operators switch tasks faster than workflows can keep up. The F Series Vantage brings quiet order back into the process. A modular flatbed platform that installs cleanly, learns quickly, and moves with steady confidence from job to job.
F Series flatbed cutters
Built for the reality of modern finishing
Watch the F Series Vantage in action
Benefits
Faster across the entire workflow
Installation
Set up without disruption. The table drops into existing spaces and connects cleanly to your workflow.
Read more
Setup & First Job
Material presets, Action Sets, and Automatic Device Calibration align the table before the first cut.
Read more

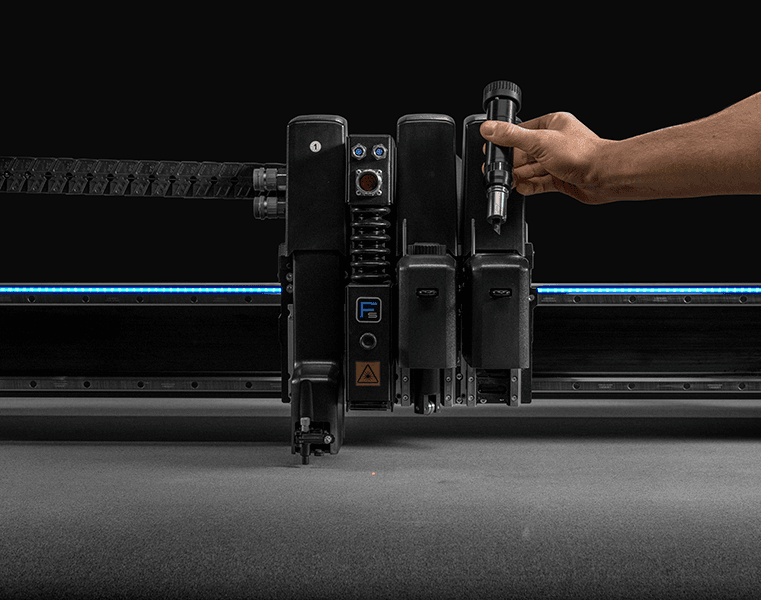

Tool Mounting
Modules identify themselves instantly. The table confirms blade types and prevents incorrect setups.
Read more
Calibration & Motion
Smarter motion cuts out unnecessary lifting. Tangential movement is faster, cleaner, and quieter.
Read more
Cutting & Processing
Run up to three modules in one flow. Edges stay clean. Creases stay controlled. Throughput stays steady.
Read more
Job Changeover
Barcode routing and repeatable Action Sets reset the table in seconds.
A predictable rhythm across the entire shift.
Read more
Ethernet connection
With ethernet connection from software to flatbed, you gain freedom of setup and security of operation, no matter how you want to set up.
Read more
Key features
Operator friendly by design
When labor is stretched thin, confidence is power. The F Series Vantage reduces the skill barrier, supports new operators, and guides experienced ones with equal clarity.
A focused interface that guides you through your workflow. One touch is all you need to get to work.
Instant visibility of readiness and job states.
Production stays calm because operators stay informed.
Automatic tool and blade recognition removes doubt and prevents costly mistakes.
3D blade profiling that tracks all information about your cutting tool, offering you consistent perfection in cutting, despite any wear-and-tear.
Smart sensors protect operators while keeping the workflow uninterrupted.
Preset behaviors for 100+ media types. Every shift delivers the same quality, regardless of who’s operating.
Open ecosystem
Ready for what comes next
Model comparison
Choose the F Series that fits your production
A clear overview to help you select the right table for your space, material range, and production rhythm.
F1612
Working area
160 × 120 cm / 63 x 47 inch
Dimensions
247 × 220 × 110 cm / 97 x 87 x 43 inch
Material width
Up to 165 cm / 65 inch
Vacuum
1.3 kW (50 Hz) / 1.75 kW (60 Hz)
F1625
Working area
160 × 250 cm / 63 x 98 inch
Dimensions
247 × 333 × 110 cm / 97 x 130 x 43 inch
Material width
Up to 165 cm / 65 inch
Vacuum
2 × 1.3 kW (50 Hz) or 2 × 2 kW (60 Hz)
F1832
Working area
184 × 320 cm / 74.4 x 126 inch
Dimensions
279 × 422 × 122 cm / 110 x 166 x 48 inch
Material width
Up to 190 cm / 75 inch
Vacuum
2 × 2.2 kW (50 Hz) or 2 × 2.55 kW (60 Hz)
F3220
Working area
327 × 210 cm / 129 x 83 inch
Dimensions
422 × 313 × 122 cm / 166 x 123 x 48 inch
Material width
Up to 332 cm / 130.7 inch
Vacuum
2 × 2.2 kW (50 Hz) or 2 × 2.55 kW (60 Hz)
F3232
Working area
327 × 320 cm / 129 x 126 inch
Dimensions
422 × 422 × 122 cm / 166 x 166 x 48 inch
Material width
Up to 332 cm / 130.7 inch
Vacuum
2 × 2.2 kW (50 Hz) or 2 × 2.55 kW (60 Hz)
Modules & tools
Built around real use cases
Applications
Sign & Display
Responsive cutting for a wide range of rigid and flexible media. Clean edges. Confident delivery.
Sign & Display
Responsive cutting for a wide range of rigid and flexible media. Clean edges. Confident delivery.
Industrial Materials
Composites, rubbers, foams, and technical substrates processed with precision and control.
Industrial Materials
Composites, rubbers, foams, and technical substrates processed with precision and control.
Packaging
From prototypes to short run production. Sharp creases, accurate folds, and predictable lines.
Packaging
From prototypes to short run production. Sharp creases, accurate folds, and predictable lines.
Textile
Steady handling of fabrics and technical textiles where consistency beats raw speed.
Textile
Steady handling of fabrics and technical textiles where consistency beats raw speed.
It’s just a machine that opens up a world of possibilities for us. Our F Series is a reliable partner for us to be creative in new ways for our customers.
Stefan
Houtakkers
D-Sign
