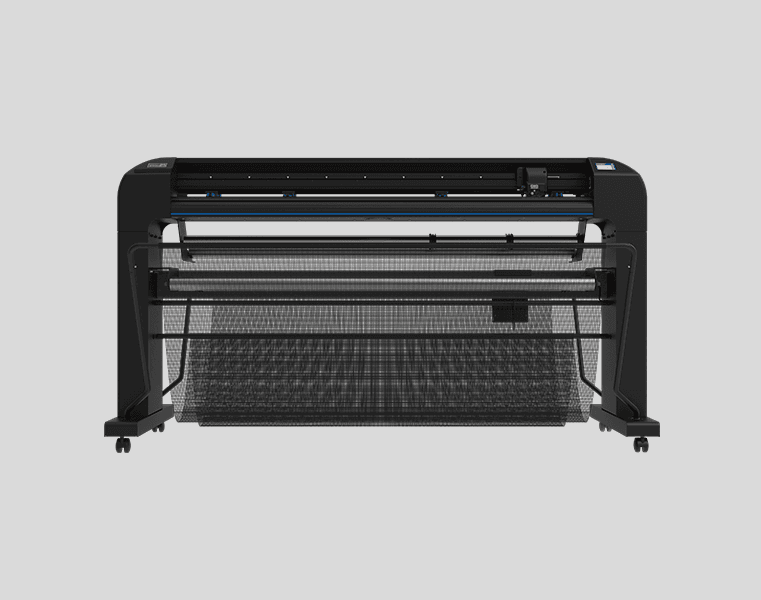

S3T140
Large format. PrEcise control.
The S3T 140 brings tangential cutting to the 54 inch production lane. It delivers clean, deliberate cuts across wider graphics, keeping contours steady and details intact, even when materials push back.
Materials
Made for mid format work that demands more accuracy
The S3T‑140 tangential cutter is built for:
54 inch wall and window graphics
Floor graphics and laminated prints
Detailed decals and long contour paths
Stencil films, PPF and structured media
Specifications
What's in your S3T140
S3T140
Maximum media width
135cm / 54"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
4
Dimensions
Designed to align with 54 inch printers and mid format finishing lines
Cutting force
Up to 1kg for thicker or specialty materials
Print registration
OPOS mark reading for precise contour tracking
Compensation
OPOS XY technology to adjust cut path to follow potential deformations in the graphic
Connectivity
USB, Wi-Fi and Ethernet
Software
GoSign workflow management, compatible with over 50 RIP Softwares
Benefits
Why you'll love your S3T140
Precision at width
The S3T‑140 maintains tight control over large graphics, keeping corners sharp and curves true from edge to edge.
Read more
Confidence on challenging media
PPF, thicker laminates, stencil materials and structured films cut cleanly without wandering blades or inconsistent pressure.
Read more
Clean detail, even on long paths
Tangential movement keeps small shapes intact and prevents tearing, bending or lifting, essential for high‑value graphics and floor visuals.
Read more
Built for 54 inch environments
Perfectly matched to mid‑large printers, the S3T‑140 helps you keep more jobs in one piece and reduces seams during installation.
Read more
Work stays in flow
The machine reads the job, adjusts automatically and moves with smooth, predictable intent.
Operators stay focused. Output stays consistent.
Read more
Other S3T sizes
Looking for a different cutter?
S3T75
Maximum media width
74,2cm / 29.2"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
3
S3T120
Maximum media width
127cm / 50"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
3
S3T140
Maximum media width
135cm / 54"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
4
S3T160
Maximum media width
158cm / 62.2"
Cutting technology
Tangential cutting knife
Max cutting thickness
1.2 mm / 0.047"
Pinch rollers
4
