Modules & tools

For fine detail on lighter materials. A refined blade designed for precision finishing on thinner substrates, delivering sharp detail with minimal distortion.

The new standard. Cuts up to 8 mm foam PVC with clean, consistent results. For many shops, this single tool replaces a series of specialty blades, dramatically reducing tool swaps.

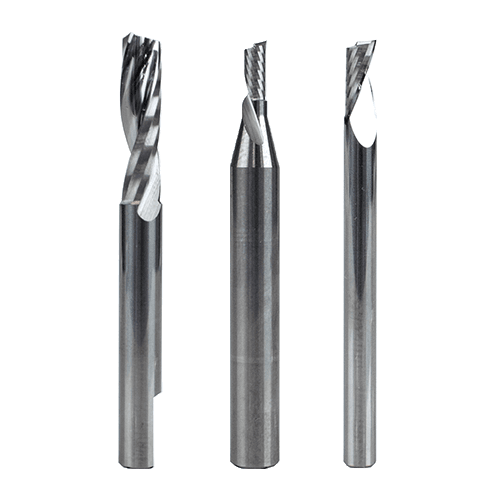

Use a bigger diameter for faster routing. If more details is required, use a small diameter. To avoid vibration, the length of the bit should be as close as possible to the thickness of the media. The depth/pass should be limited to 1 time the diameter size of the bit for the standard router and 1,5 times the diameter of the bit for the HF router. The maximum media thickness should not exceed 3 x the bit diameter.

Use a bigger diameter for faster routing. If more details is required, use a small diameter. To avoid vibration, the length of the bit should be as close as possible to the thickness of the media. The depth/pass should be limited to 1 time the diameter size of the bit for the standard router and 1,5 times the diameter of the bit for the HF router. The maximum media thickness should not exceed 3 x the bit diameter.

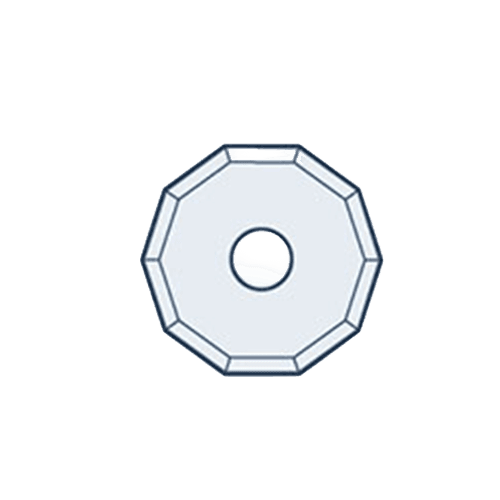

Handle all kinds of textiles with different diameter sizes tailored to the thickness of your media.

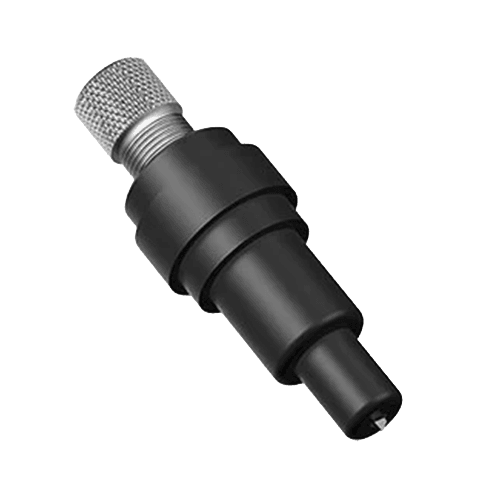

The Drag Knife Tool is specifically designed for fast kiss-cutting a wide range of material. With 600 g of force, this tool is ideal for cutting through a wide range of adhesive types of vinyl.

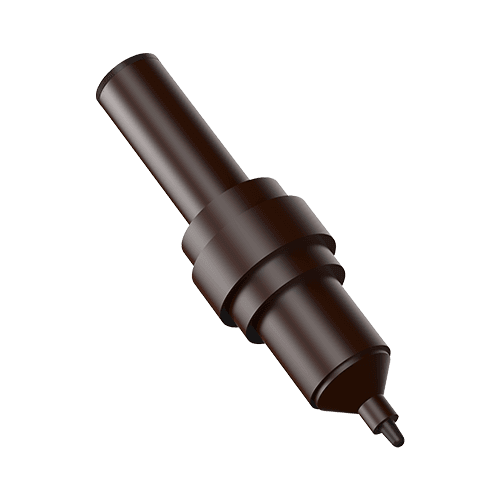

Attached to the Drag Module, this fast and accurate tool allows precise drawing on a range of materials, using either our own brand of fiber tip pens or a variety of third-party pencils and pens in a multitude of sizes and diameters, using the Universal Pen Holder Tool.

With mechanically-controlled knife pressure, this tool is specifically designed for kiss-cutting material down to its liner up to 1.2 mm thick. This tool also includes an adjustable nose piece for precise depth control.

The Single Edge Cutout Tool is designed for detailed cutting through materials up to 6 mm thick. A spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

The Double Edge Cutout Tool ensures minimal wear when cutting through rigid materials up to 5 mm thick. A spring-loaded gliding disk allows cutting of very precise details and can be fixed at a set depth.

The Heavy Duty Cutout Tool is suitable for cutting through thicker material up to 15 mm thick.

The Creasing Tools are designed in several radius sizes and depth configurations to create folds in a variety of materials, such as paper, cartons, polypropylene and PVC material.

The V-Cut Tools are available in 5 angles and are designed to cut a V-shaped groove in honeycomb and papercore boards up to 27 mm thick, depending on the material’s density.

The EOT is ideal for cutting soft and medium-density materials, designed for cutting through material up to 10 mm thick and lightweight material up to 18 mm thick. This tool is driven by an electric motor, producing up to 12,000 rpm and moves a knife up and down over a stroke of 1 mm.

This tool is available in two types. The POT is powered by compressed air and moves its knife up and down over a stroke of 8 mm. It is designed to cut through thicker, stronger and more rigid material up to 25 mm thick. The POT-L has a long knife to cut thick, soft material with a minimum thickness of 20 mm and a maximum thickness up to 42 mm.

The perforating tool is used to make perforations in a very efficient and fast way. By using this tool, the perforated materials will be a lot easier to bend or fold. This will save considerable time in the assembling of, for instance, cardboard or polypropylene boxes.
