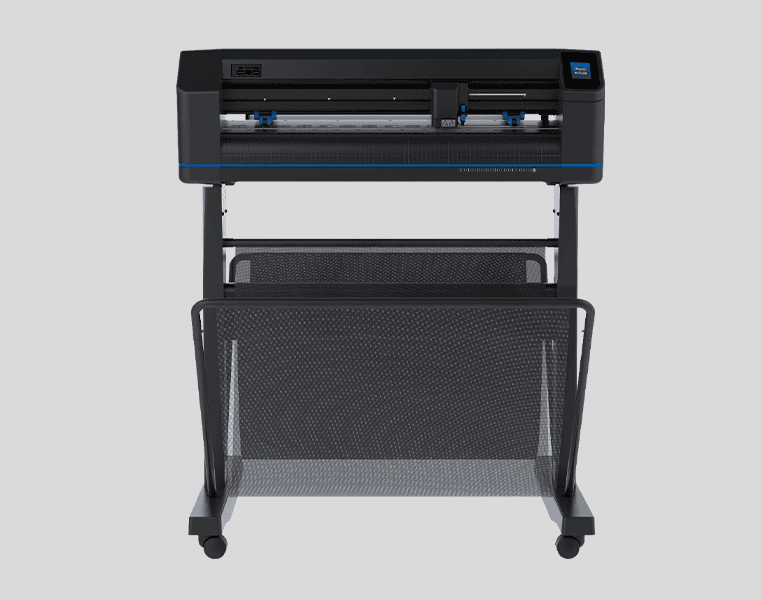

S1D60
Compact in size. Complete in capability
The S1D60 is your go to cutter for compact vinyl and apparel work. Fast to set up, easy to trust, and built to keep smaller jobs moving without slowing the rest of your production.
Materials
Made for classic vinyl and apparel work
The S1D60 is ideal for shops that run a steady mix of small signage and garment decoration, including:
Flex and flock films for apparel personalization
Stickers, labels and small decals
Helmet and equipment markings
Specifications
What's in your S1D60
S1D60
Dimensions
97 x 40.6 x 30.4 cm
38.2" x 16" x 12"
Media width
7.9 to 70.5 cm
3.2" to 27.7"
Max working width
59cm x 50cm
29.1" x 164 ft
Media thickness
0.05 mm to 0.25 mm
0.002" to 0.010'
Speed
Up to 1131 mm/s (44"/s) diagonal
Acceleration
Up to 3G diagonal
Knife pressure
0 to 600 gr
Cutting technology
Drag knife
Pinch rollers
3
Benefits
A small footprint that takes on most small jobs
Clarity from day one
The familiar interface and customizable presets mean operators can start cutting within minutes, not days. No steep learning curve.
Read more
Perfect for flex, flock and labels
Optimized for classic vinyl and textile films, the S1D60 handles the majority of small format work with ease: flex, flock, labels, and personalization jobs.
Read more
Clean contour cuts that weed easily
OPOS mark reading and precise motion control keep cuts on track, so you get sharp corners and smooth curves that peel quickly without tearing.
Read more
Confidence in every run
Built on Summa’s proven S Series engineering, the S1D platform is designed for repeatable quality, long term reliability, and minimal operator intervention.
Read more
Fits where you work
The compact size makes the S1D60 an ideal satellite cutter near your DTF, flex/flock, or small-format print station – shortening walking distances and keeping your workflow in flow.
Read more
Other sizes in the S1D Series
Looking for a different width or a better match with your printer?
S1D60
Dimensions
97 x 40.6 x 30.4 cm
38.2" x 16" x 12"
Media width
7.9 to 70.5 cm
3.2" to 27.7"
Max working width
59cm x 50cm
29.1" x 164 ft
Media thickness
0.05 mm to 0.25 mm
0.002" to 0.010'
S1D120
Dimensions
161.5 x 70.4 x 111.2 cm
63.6" x 27.7" x 43.8"
Media width
13.3 to 135 cm
5.3" to 53.1"
Max working width
123.5 cm x 50 m
48.6" x 164 ft
Media thickness
0.05 mm to 0.25 mm
0.002" to 0.010'
S1D140
Dimensions
176.5 x 70.4 x 111.2 cm
69.5" x 27.7" x 43.8"
Media width
18.7 to 150 cm
7.4" to 59"
Max working width
138.5 cm x 50 m
54.5" x 164 ft
Media thickness
0.05 mm to 0.25 mm
0.002" to 0.010'
S1D160
Dimensions
196 x 70.4 x 111.2 cm
77.2" x 27.7" x 43.8"
Media width
18.7 to 169 cm
7.4" to 66.5"
Max working width
158 cm x 50 m
62.2" x 164 ft
Media thickness
0.05 mm to 0.25 mm
0.002" to 0.010'
