Find excellence in tangential cutting

The vinyl cutters of the T Series are part of Summa's top-level S Class 2 range. The T Series combines the precision of a flatbed cutter with the ease and speed of a roll-fed cutter. All of this by using our legendary True Tangential cutting head. The T Series simply cuts with more force and accuracy than any cutter in its class.



What makes Tangential Cutting unique?

Are you unsure about which cutting head you should choose, drag or tangential? We are happy to explain the difference to you.

Read more





Specifications

Our teams are happy to advise you on a model that best suits your business.

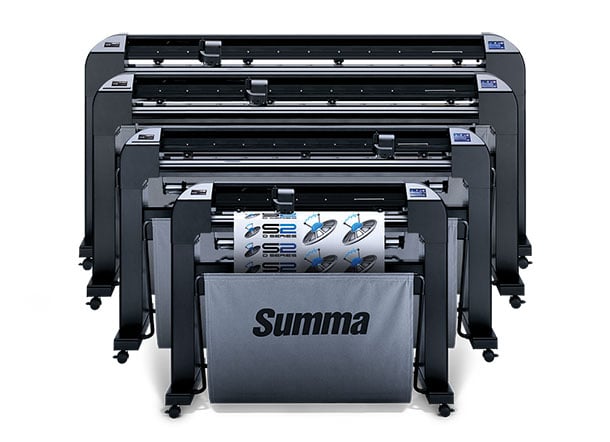

MODELS T75Logo T120Logo T140Logo T160Logo
CUTTING TYPE True Tangential with Drag Knife Cutting Mode Capability
CUTTING WIDTHS S2 T75 74.2 cm (29.2 inch), Extended Mode: material width S2 T120 120 cm (47.2 inch), Extended Mode: material width S2 T140 135 cm (53.1 inch), Extended Mode: material width S2 T160 158 cm (62.2 inch), Extended Mode: material width
CUTTING SPEED All S Class 2 models cut at speeds up to 1414 mm (56 inches) per second diagonal
AXIAL ACCELERATION Up to 4 G
MAXIMUM ACCELERATION Up to 5.5 G diagonal
ALIGNMENT TYPE
  • OPOS CAM : Factory upgrade on all new Summa S Class 2 S75T, and S160T
  • Barcode job recognition
  • Up to 2 x 64 marks on the X-line
  • Y-Line compensation
TRACKING PERFORMANCE Within ± 0.1 mm (± 0.004 in.) on plots up to 12 m long (40 ft.); on rolls up to 760 mm wide/long
up to 4 m long on rolls over 760 mm wide
ACCURACY 0.2 % of movement or 0.25 mm, whichever is greater
CUTTING FORCE 0-600 grams of down-force, in 5 gram increments
DISPLAY LANGUAGE English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese
CONNECTIVITY USB; Ethernet
POWER REQUIREMENTS 100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum
DIMENSIONS S2 T75 141 (W) x 68 (D) x 111 (H) cm 55.5 (W) x 26.8 (D) x 43.7 (H) in. S2 T120 187 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in. S2 T140 225 (W) x 68 (D) x 111 (H) cm 73.6 (W) x 26.8 (D) x 43.7 (H) in. S2 T160 225 (W) x 68 (D) x 111 (H) cm 88.6 (W) x 26.8 (D) x 43.7 (H) in.
SHIPPING WEIGHT S2 T75 69 kg (152 lbs) S2 T120 86 kg (189 lbs) S2 T140 90 kg (198 lbs) S2 T160 114 kg (251 lbs)
OPERATING TEMPERATURE 59˚ to 95˚F (15˚ to 35˚C)
STANDARD ACCESSORIES WinPlot or MacSign Cut Software, CutterControl Parameter Software, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), Standard 36˚ Blade Holder, 2 Standard 36˚ Blades, Cut-off Knife (Manual Slitter), 2 Cut-off Razor Blades, Stand and Basket.
OPTIONAL ACCESSORIES   Roll-up system for Summa S Class 2 140 and Summa S Class 2 160
