L1810 Laser Cutter

Introducing the new L1810 2nd generation laser cutter

Back to overview



Optimal power control
leading to meticulously cut products

The L1810 laser cutter is suitable to cut textiles, such as sportswear, dye sublimation garments but also all sorts of raw materials used in the composite industry. The extreme focus of the laser beam leads to far-reached precision even in high-production environments.



Future-proof to grow along with your company

The L1810 models are built to meet the highest cutting requirements and have many retrofittable options and features, so you can enhance your cutter at any given time that suits you and the growth of your company best.

High-quality Laser source

The laser cutter is equipped with the best quality sealed RF laser source. It keeps the laser beam focused and constant for highly precise results and leaves edges sealed and soft without fraying. The laser cut is contactless, meaning there is no drag on the material and no need to change blades. It enables users to process sensitive and easily distorted textiles with high precision.

Classified safety system

The L1810 meets the Class 1 standard, ensuring the laser cutting source is covered during operation and paused when the cover is opened. For safety and environmental reasons, fumes are removed by the internal extraction system. Some residue can be produced when laser cutting, but is removed from the cutting chamber by the extraction system. This way, a clean work environment is maintained.

Unique Conveyor System

  • Continuous processing of materials on roll, using a segmented feed to cut part by part seamlessly
  • The vacuum holding down the material ensuring a smooth media movement through the working area and a clean-cut
  • Metal non-reflective slat construction avoiding flashbacks

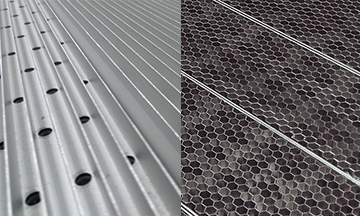

  • Choice of conveyor planks: blade planks for most applications, optimal fume extraction, easy to clean and durable or honeycomb planks for a better grip on lightweight, slippery materials.

Camera Systems

The Head camera is standard included. It reads printed registration marks to perform a perfect cut.

The Vision System is available as an option. It provides state-of-the-art camera recognition for scanning the material. In addition, Vision allows cutting while the material is being fed and scanned, simultaneously, leading to more time for the operator to attend to other tasks.

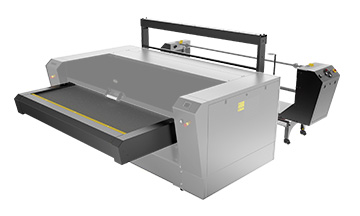

Field upgradable options
L1810 2nd generation

  • Vision Camera System: increasing productivity and workflow efficiency
  • GoProduce Pro Pack: Workflow automation with Barcode functionality
  • Front Conveyor Extension: less tension on the material and easier picking of cut pieces
  • Unwinder for constant feed and media alignment
  • Conveyor planks: Blade or Honeycomb for lightweight materials

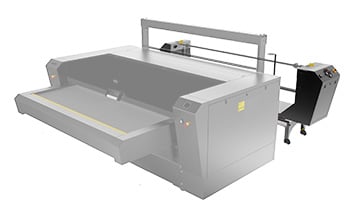

Unwinder options

The motorized unwinder ensures that the material is transported to the cutting bed in a constant and stable manner, thus eliminating fabric distortion during cutting. Two models are available:

  • Unwinder with droop sensor: ideal for loading thin material where the loop is kept constant.
  • Unwinder with edge detection: for a constant alignment and perfect even rolling off of textile material.



bENEFITS OF L1810 laser cutting technology

Enjoy the benefits of an automated workflow, reduced idle periods and maximum use of material with a minimum of waste.

  • Small footprint and stable base: Facilitating easy installation and fitting in about any size of production area
  • Contactless cutting with high precision: No fabric distortion while cutting, therefore even suited for sensitive and easily distorted textiles
  • Perfectly sealed edges: Cutting quality exceeding your expectations
  • Continuous production of roll materials: Thanks to the unique conveyor system and workflow automation with GoProduce software
  • Significant cost savings: Fewer labor costs thanks to automation, low setup costs and no tool cost

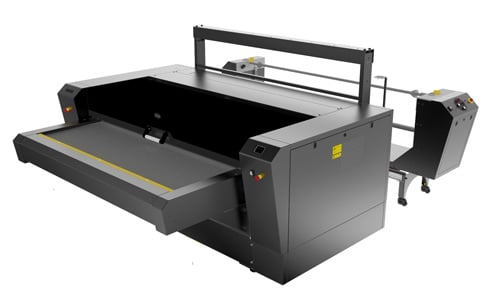

L1810-2-With-Options

L1810-2-With-Options

Choose your ideal cutting workflow

The L1810 laser cutter can be used to process a broad gamut of applications to the highest quality expectations. Depending on the specific application and production environment, different cutting workflows/technologies can be used. Find your ideal cutting workflow based on production volume and the application that needs to be cut.

Read more

Cut-on-the-fly workflow

With this cutting technology, the Summa laser cutter keeps cutting while scanning and feeding the material simultaneously through the Vision camera system. This will facilitate extreme fast processing of jobs, increasing the production capacity considerably. Especially within high-volume production environments, this technology will be used to its full potential.

Only possible with Vision camera.

Cut-to-frame workflow

Summa’s Cut-to-Frame workflow allows cutting banners precisely to the millimetre, so they will perfectly fit into a frame with the image aligned as desired. This cutting workflow is an ideal solution for cutting Silicone Edge Graphics (SEG) efficiently and meticulously, so post-cutting labour is reduced to an absolute minimum.

Possible with Vision or Head camera.

Trace & Cut workflow

The Trace & Cut workflow allows automatic processing of an entire roll with different jobs without pre-prepared cutting data. By means of the Vision camera system, contours of the artwork are traced without the need to retrieve cutting files. Subsequently, the artwork is scanned and cut automatically, offering maximum operator comfort.

Only possible with Vision camera.

Barcode workflow

Using the Barcode workflow, an entire roll with different cutting jobs can be processed with minimal operator intervention. This will lead to fewer human errors, higher productivity, impeccable cutting results and freed-up time for the operator to attend to other jobs.

Possible with Vision or Head camera in combination with GoProduce Pro Pack.




sPECIFICATIONS

Our teams are pleased to give you more information and product advice.



MODEL L1810
2nd generation
LASER POWER 50 or 100 Watt (Aircooled)
120 or 250 Watt (Watercooled)

DIMENSIONS

(H x W x D)

1172 x 2810 x 2178 mm
1172 x 2810 x 2578 mm
(Base with Front Conveyor Extension)
1632 x 2810 x 2178 mm (Base with Vision System)
All dimensions are displayed without Unwinder.

MEDIA WIDTH Up to 1845 mm
WORKING AREA 1840 mm x 950 mm
SPEED Up to 1000 mm/s
ACCELERATION Up to 1G
CAMERA RECOGNITION
  • OPOS marks
  • Optional: Vision System
FEATURES
  • Welded Steel base
  • Three phase input
  • Repeatability 0,05% of move or 0.05 mm (whichever is larger)
STANDARD SOLUTION INCLUDES
  • Summa GoProduce Laser Edition
  • Conveyor System (with configurable planks)
  • Compressed air drying bowl and flow regulator
  • Head Camera
OPTIONS
  • Summa GoProduce Laser Edition Pro Pack
  • Planks: Blade or Honeycombs Planks
  • Front Conveyor Extension
  • Unwinder
  • Vision System

Would you like to see more of the L Series? Contact us for a demo!
