V Series Tool Holders and Tools

Choose your unique set of tools for the best performance of your V Series.

Discover our entire range

An array of tools for perfect cutting results.

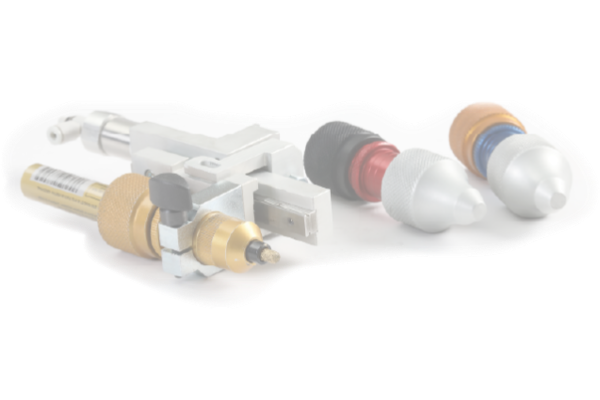

Tool holders

All V Series cutting machines are based on a modular tooling system that enables the assembly of different tools from a set of common building blocks. Thanks to this system users can quickly assemble tools for different applications. This reduces the time of tool changeover and boosts productivity. Discover all their features.

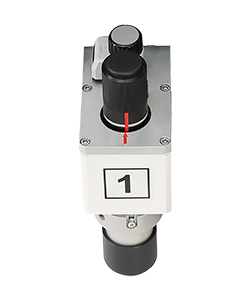

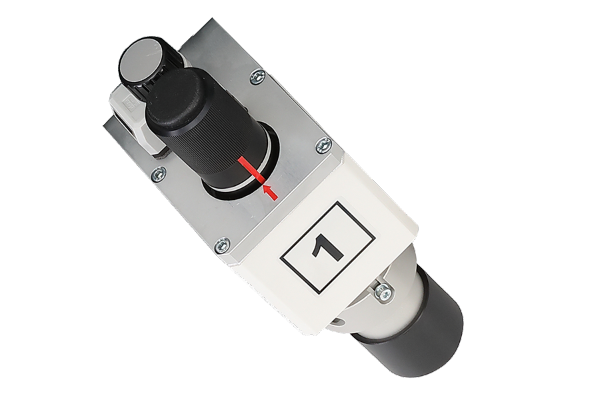

Multifunctional Tool Head (MTH)

Versatile and designed to fit many different tools, it makes it easy to switch from one tool to another and guarantees the possibility of having countless tools on the machine.

A simple locking system allows tool changes in less than 10 seconds.

  • Quick Tool Change and No calibration needed
  • High Precision Adjustment Setup
  • Long Life and Heavy-Duty Equipment

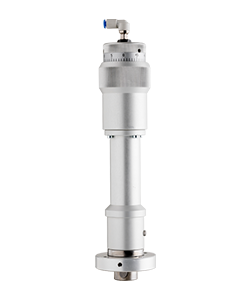

VersaTool Holder (VTH)

The essence of the All-in-One tool. VersaTool Holder is designed to fit all the interchangeable tools and it is for kiss-cut on adhesives, straight cut on varnishing plates / rubber blankets, on any type of cardboard and v-cut on chip grey boards.

  • Quick tool change and no calibration needed
  • Versatility and reliability
  • Limitless expandability / No obsolescence

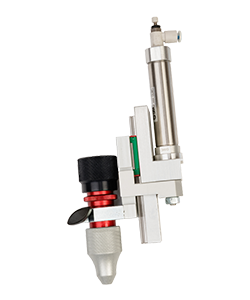

Fixed Tool Holder (FTH)

On Valiani machines it is possible to mount fixed tool holders in addition to the ones provided by default. This tool holder supports every type of pen, pencil and felt-tip pen, thought to draw and write on many materials including cardboard and paper patterns for apparel market.

Tools

Valiani has also an array of tools that fit onto a multifunctional tool holder to enlarge the range of cutting process available on some models such as Oscillating cut, V-Cutting, Kiss cutting and many others.
Valiani Tools grant the user both modularity and quick-change capability. This economical versatility represents a gain in the machining capacity, improving the return on the capital invested in the machine.

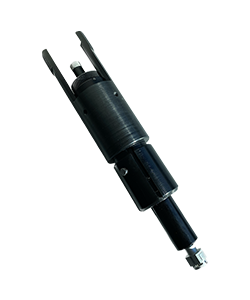

Kiss Cut

The Kiss-Cut Tangential Knife accurately peels the top layer of thin materials, with a spring-controlled blade and manual depth control, ideal for applications like vinyl stickers and labels.

Materials:

  • Paper <200 gr
  • Adhesive vinyl sandblast
  • Adhesive PVC banner
  • Protective film

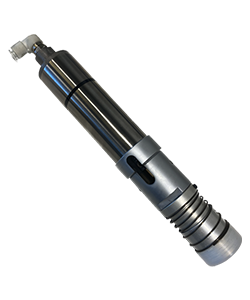

Powerful Pneumatic Oscillating knife (PPO)

The Powerful Pneumatic Oscillating Knife is the perfect tool for cutting heavy materials up to 20 mm thick with an 8 mm stroke and 9.000 BPM.

Materials:

  • Honeycomb board
  • Foamboard
  • Coroplast board
  • Rubber gaskets

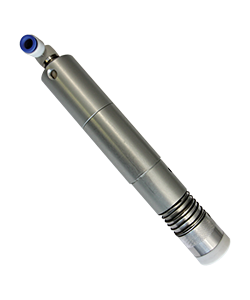

High-speed Pneumatic Oscillating knife (HPO)

The High-Speed Oscillating Cutting Tool offers precise, high-speed cutting for various soft materials with an 8 mm stroke and 14,000 BPM.

Materials:

  • Multi-flute corrugated board
  • Textile and leather
  • Foamboard
  • Micro corrugated board

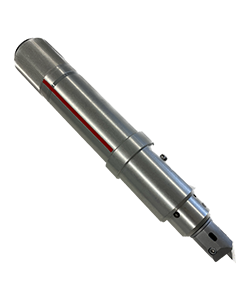

Multipurpose Tangential Drag knife (MTD)

The Multipurpose Tangential Knife delivers high-quality, precise cuts at full speed on materials up to 5 mm thick, handling a variety of thin materials.

Materials:

  • Folding carton
  • Paperboard
  • Micro-corrugated board
  • Motorbike decals
  • Grey chipboard

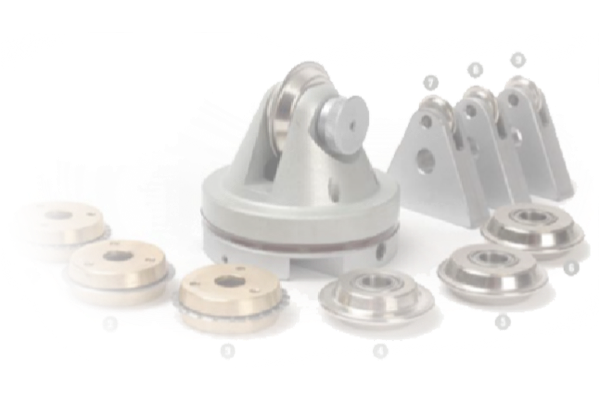

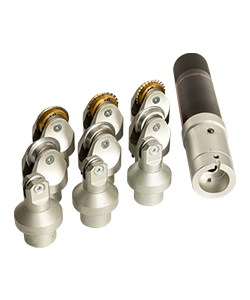

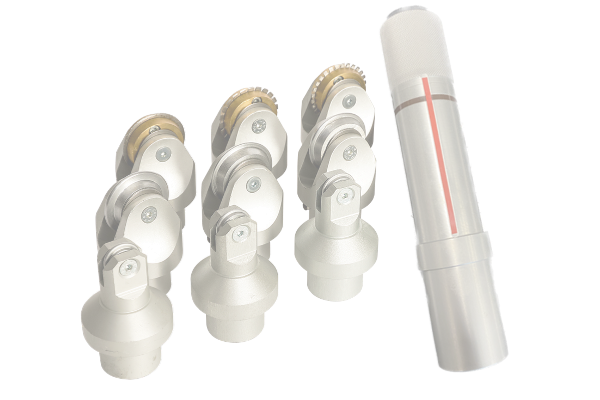

Universal Creasing Tool (UCT)

The Universal Creasing Tool features 9 interchangeable wheels for creasing and perforating various materials, with adjustable pressure for clean, precise results.

Materials:

  • Honeycomb board
  • Foamboard
  • Coroplast board
  • Rubber gaskets

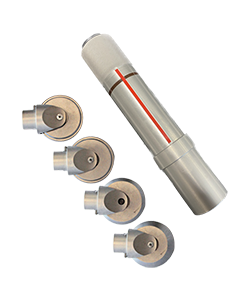

Multi-Wall Creasing Tool (MCW)

The Multi-Wall Creasing Tool features 4 multi-flute creasing wheels that are designed to produce fine, clean creases with adjustable pressure.

Materials:

  • Single- and triple-wall corrugated board
  • Double-wall archival board
  • Polypropylene honeycomb

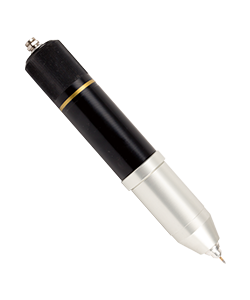

Plot Drawing Tool (PDT)

The Plot Drawing Tool allows high-speed labelling of materials like cardstock with text or marks.

Materials:

  • Folding cardstock
  • Cardstock for apparel patterns
  • Polycarbonate sheet
  • Polyester-based varnishing plates

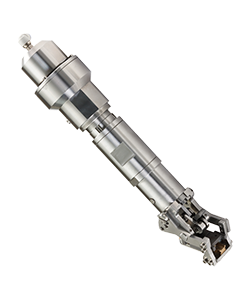

V-Cut & Bevel Tool (VBT)

The V- and Bevel-Cut Tool creates beveled edges and folds on thicker materials of 6 to 16 mm with its adjustable blade angles.

Materials:

  • Honeycomb board
  • Triple-wall corrugated board
  • Foam board
  • Light coroplast

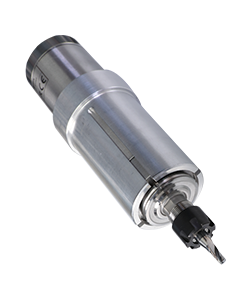

Routing Tool (RT)

The Routing Tool, with its 1kW router, processes rigid media up to 13 mm thick, with a speed range of 5.000-60.000 rpm.

Materials:

  • Aluminum composite
  • Soft and hardwoods
  • MDF
  • Plexiglass
  • PVC sheets
Tools for the VersaTool

VersaTool is made up of two components: a tool holder and tool. The tool attaches firmly using strong magnets, allowing for easy tool interchangeability.

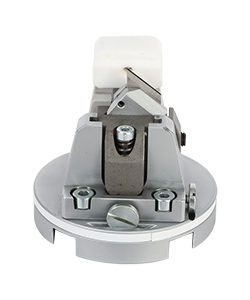

White 90°-Straight Cut & Kiss-Cut (IHW)

The White 90° performs half-cuts and straight cuts for materials up to 6.3 mm thick and features a pressure roller and Teflon foot.

Materials:

  • Grey chipboard sheets
  • Luxury packaging board
  • Varnishing plates
  • Rubber blankets
  • Polyester-based varnishing plates

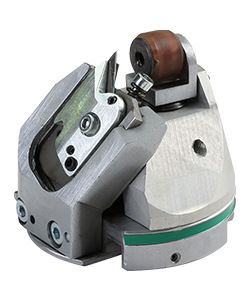

Green 40° – Bevel Cut (IHG)

The Green 40° tool creates bevel- and V-cuts at a 40° angle, ideal for cutting small shapes up to 2.3 mm thick.

Materials:

  • Standard matboard up to 2.3 mm (6 ply)
  • Polyester-based varnishing plates
  • Suede mat board up to 2.3 mm
  • Archival corrugated board

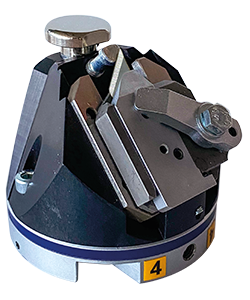

Blue 45° – Bevel Cut (IHB)

The Blue 45° creates bevel- and V-cuts at a 45° angle, ideal for cutting luxury packaging and rigid boxes up to 5 mm thick.

Materials:

  • Standard matboard
  • Foamboard up to 5 mm
  • Grey chipboard up to 5 mm
  • Luxury packaging board

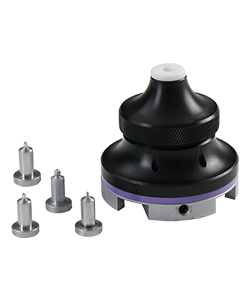

Purple – Embossing/Debossing (IHP)

The Embossing Purple tool features 4 tip types and creates elegant embossed or debossed designs on various materials.

Materials:

  • Standard matboard
  • Coated and laminated paper
  • Folding cardstock
  • Braille characters

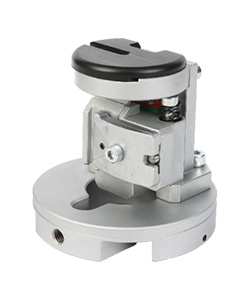

Grey 90° – Straight Cut (IHG)

The Gery 90° has been developed to perform a straight cut on a wide range of materials up to a thickness of 5 mm (3/16’’). It releases a perfect finishing results on folding and corrugated cardboard, vinyl adhesives, thin plastics and more. It has the same function of the multipurpose tangential knife.



  • Universal Straight cutting tool
  • It comes as standard with a metal and teflon foot
  • Compatible with VersaTool Holder

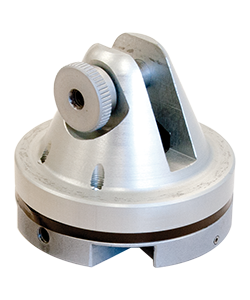

Brown – Creasing/Scoring (IHBr)

The Brown tool features 9 wheels for creasing and scoring various types of cardstock, board, and carton.

Materials:

  • Folding carton
  • Micro corrugated board
  • Polypropylene honeycomb
  • Archival corrugated board
Fixed Tools

On every machine, it is possible to mount a fixed tool as a third or second optional tool, depending on the machine model. This allows you to greatly expand the customization options available.

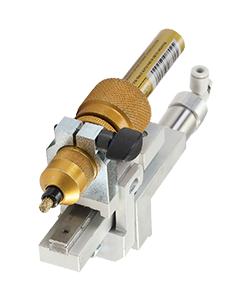

Multipurpose Drawing Tool (MDT)

Mount a fixed pen tool to the head. The tool accommodates a wide range of pens, pencils, and felt-tip markers, making it ideal for drawing and writing on various materials.

Materials:

  • Paper
  • Cardboard
  • Textile
  • ...
