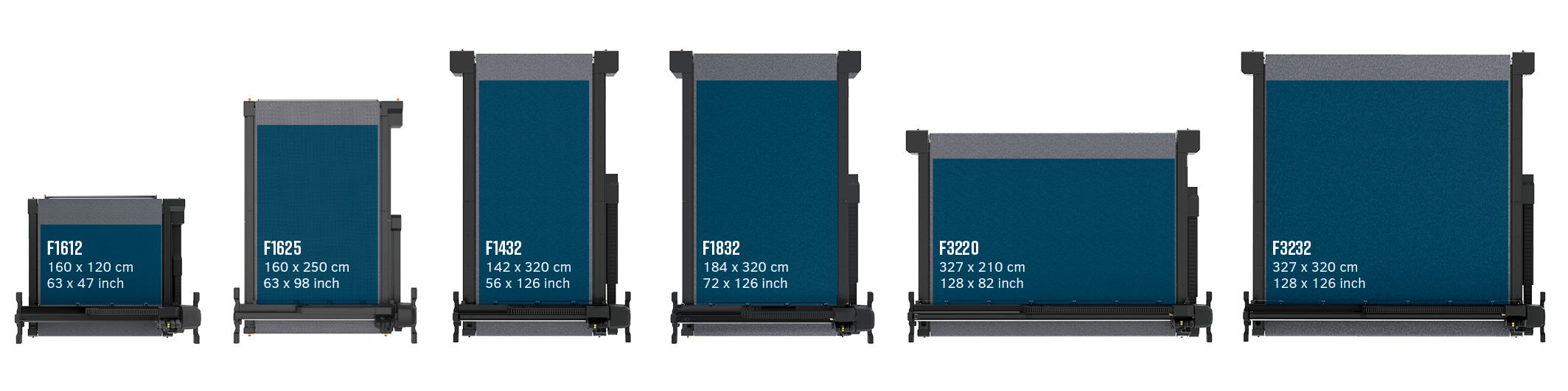

F Series Flatbed Cutters

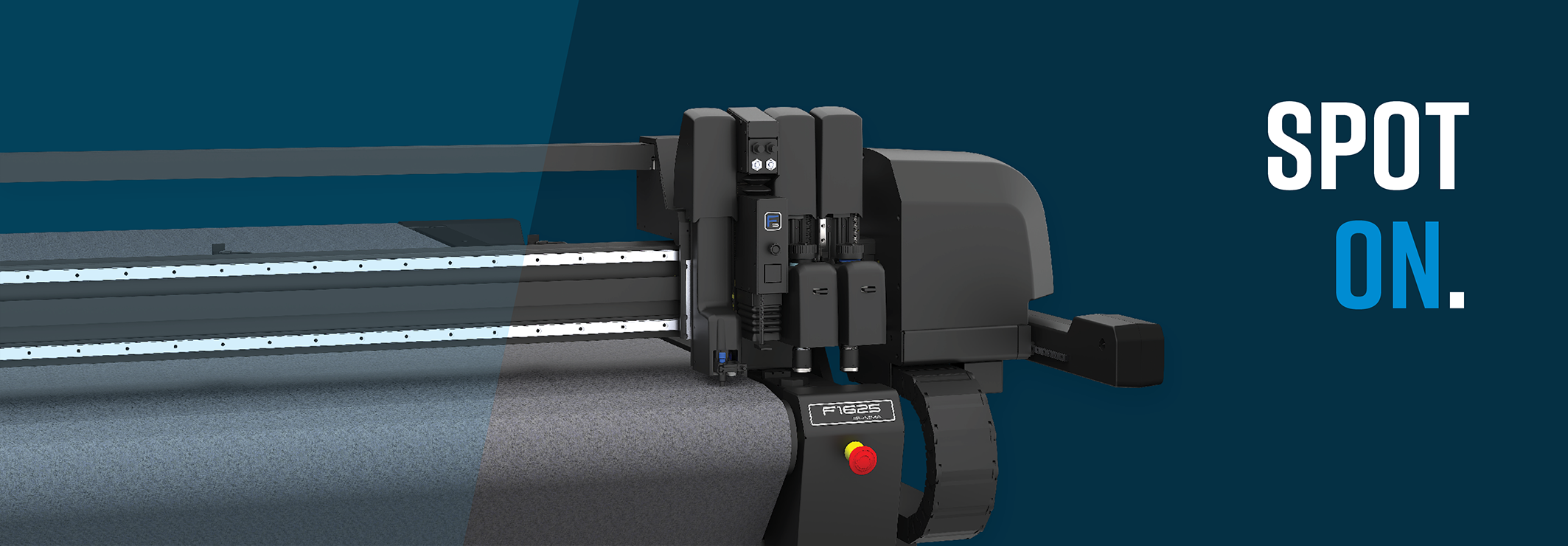

New F1625 Flatbed Cutter

GoProduce Software To Perfectly Match Your F Series

The software GoProduce is developed to handle jobs easy and efficiently. The modern interface with improved navigation enables users to find and operate functions as quickly and intuitively as possible.

• Find out more

Multifunctional Cutting Head For Cutting Efficiency

The multifunctional head can hold up to three modules at one time. The central unit houses a positioning laser and an integrated camera system for fast and accurate contour-cutting mark recognition.

Tangential Module For Power And Precision

Offering a vertical force of 10 kg and corresponding to a wide range of matching tools. Each tool has a barcode identifier, ensuring automatic recognition and parameter settings.

• True Tangential Technology

Advanced Safety System

The advanced Safety System, delivered with all F Series models, guarantees a safe work environment and is compliant to worldwide health and safety requirements. Thanks to the placement of the system on the top beam, the F Series can be accessed easily, which results in higher production efficiency.

• Watch video

Barcode For Automated Workflows

The barcode automatically identifies the job to obtain the necessary cutting data from the computer. The built-in camera scans the job automatically or by a hand scanner, depending on the selected workflow.

Automatic Depth Control (ADC)

The ADC automatically sets the knife depth and the orientation of the tool. The tip of the knife or bit is measured accurately and the down position of the tool is set to table's level, guaranteeing a flawless cut. Both the ADC left and ADC right is included with every new F Series flatbed cutter.

Conveyor Extension To Minimize Downtime

The conveyor extension, optional on the F1612 flatbed cutter, processes cut designs that are much larger than the actual cutting area. While the machine cuts the next part, the first cutout parts can be removed safely at the extended front.


Accelerated Workflow With F-Performance

Increase the performance of your F Series flatbed system with almost 40%. Advantages include faster up, down and turning movements of the cutting head, which will be most remarkable when using the Kiss-cutting tool.

• Find out more

Heavy-Duty Roll Support

The optional Heavy-Duty Roll Support allows a straight throughput of print rolls onto the wide-format flatbed sizes, F1832, F3220 and F3232. For the processing of heavy banner material and light to non-stretchable wide textile rolls, this roll support will facilitate the operator’s life considerably.

• Watch video

Media Handling OPTION

Boost Your Workflow With The Automatic Sheet Feeder For The F1612

Summa introduces the Sheet Feed 75, a state-of-the-art automatic sheet feeder engineered to enhance automation and streamline workflow processes.

Whether you're handling small-scale projects or high-volume production, the sheet feeder eliminates the need for manual media handling, allowing your business to operate at peak performance with minimal operator intervention.
